Factoy Direct Supply Precision Pipe Cold Rolled Seamless Steel Pipe Auto Transmission Shaft

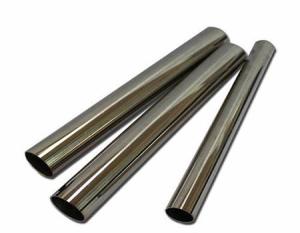

Product Name: Cold Rolled Precision Seamless Steel Pipe
Material:Carbon&Alloy
Outer Diameter: 16-194mm
Wall Thickness: 2-10mm
Grade:EN10305,DIN2391
Precision pipe is a high-precision, high brightness seamless steel pipe produced by cold drawing or cold rolling. Its inner and outer diameters can be accurate to within 0.2mm, while ensuring bending and torsional strength, it is light in weight, so it is widely used in the manufacture of precision mechanical parts and engineering structures.
Delivery Conditions
| BKS(+SR) | After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere. |
| NBK(+N) | NBK(+N): After the final cold drawing operation the tubes are normalized in a controlled atmosphere. |
| GBK(+A) | GBK(+A): After the final cold drawing process the tubes are annealed in a controlled atmosphere. |
| BK(+C) | BK(+C): No heat treatment after the final cold drawig process. |
| BKW(+LC) | BKW(+LC): After the final heat treatment there is a suitable drawing pass |
| Deviation level | Standardized Outer Diameter Tolerance |
| D1 | ±1.5%. Minimum±0.75 mm |
| D2 | ±1.0%. Minimum±0.50 mm |
| D3 | ±0.75%. Minimum±0.30 mm |
| D4 | ±0.50%. Minimum±0.10 mm |
Packing & Delivery
1. Packing: Seamless Steel Pipe will packing in bundles/in bulk/in plastic packing.
2. Trade terms:FOB/CFR/CIF
3. Shipping port: Xingang Tianjin
4. Shipment:
1) Small diameter: Weight >Measurement
a. Length: ≤5.8m, loaded in 20FT Container, Max 27-28tons
b. Length: ≤11.8m, loaded in 40 FT Container, Max 27-28tons
c. Length: ≥12m, shipped by bulk vessel. FILO terms
2) Big dimater: Weight a. Size of 20 FT Container(inside :5898*2352*2350mm)(12024*2352*2395mm)
5.Delivery time: Normal size: 7days send from warehouse directly. Special size: 25-30days custom made for you.
Production Process
Different processing methods and corresponding auxiliary procedures are selected according to the processing performance of the metal, the size of the pipe, the quality requirements, and the investment and benefits. The basic processes of cold-rolled and cold-drawn pipes are:
(1) pipe material supply, the pipe materials used are hot-rolled finished pipes or semi-finished pipes, extruded pipes and welded pipes;
(2) pipe material preparation, including inspection, bundling, acid Washing, cleaning, rinsing, neutralizing, drying, lubricating, etc.;
(3) Cold working (cold rolling or cold drawing);
(4) Finishing of finished products includes heat treatment of finished products, straightening, sampling, cutting heads and tails, inspection (Manual inspection and various flaw detection), hydraulic test, oiling, packaging, storage, etc. Different products have different finishing contents.
Our Company
Shandong Huiyuan Metal Material Co., Ltd. is located in Liaocheng Economic and Technological Development Zone, Shandong Province,which is known as "Water City North of the Yangtze".
Hui Yuan is a trading company established based on Liaocheng Development Zone Jinyun Steel Pipe Co., Ltd. The factory has more than ten years of professional production experience .Now we have cold rolled seamless steel pipe 12 production lines and hot rolled seamless steel pipe 1 production line,one more hot rolled seamless steel pipe production line is under construction.
Our main products are listed as follows: Hot Rolled steel pipe, Precision Cold Rolled steel pipe, Cold Drawn steel pipe, alloysteel pipe, bearing steel pipe, spiral pipe, galvanized pipe,Honed tube,special shape steel pipe.etc.
Our products have been exported to Germany, South Korea, Russia, Malaysia, Pakistan, Thailand, India, Ukraine and other countriesand regions. We sincerely welcome friends from all over the world to contact us and establish mutually beneficial business relations.
